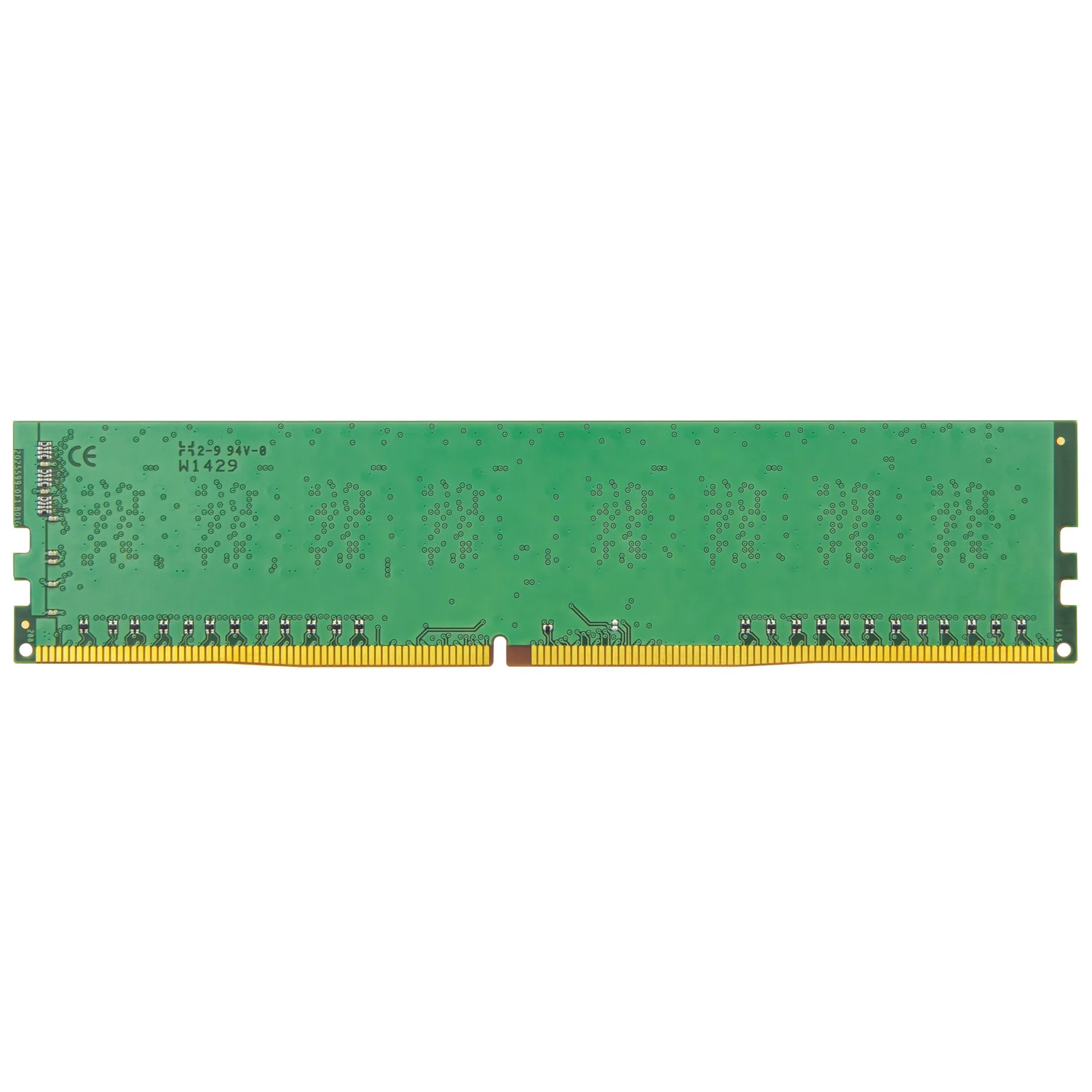

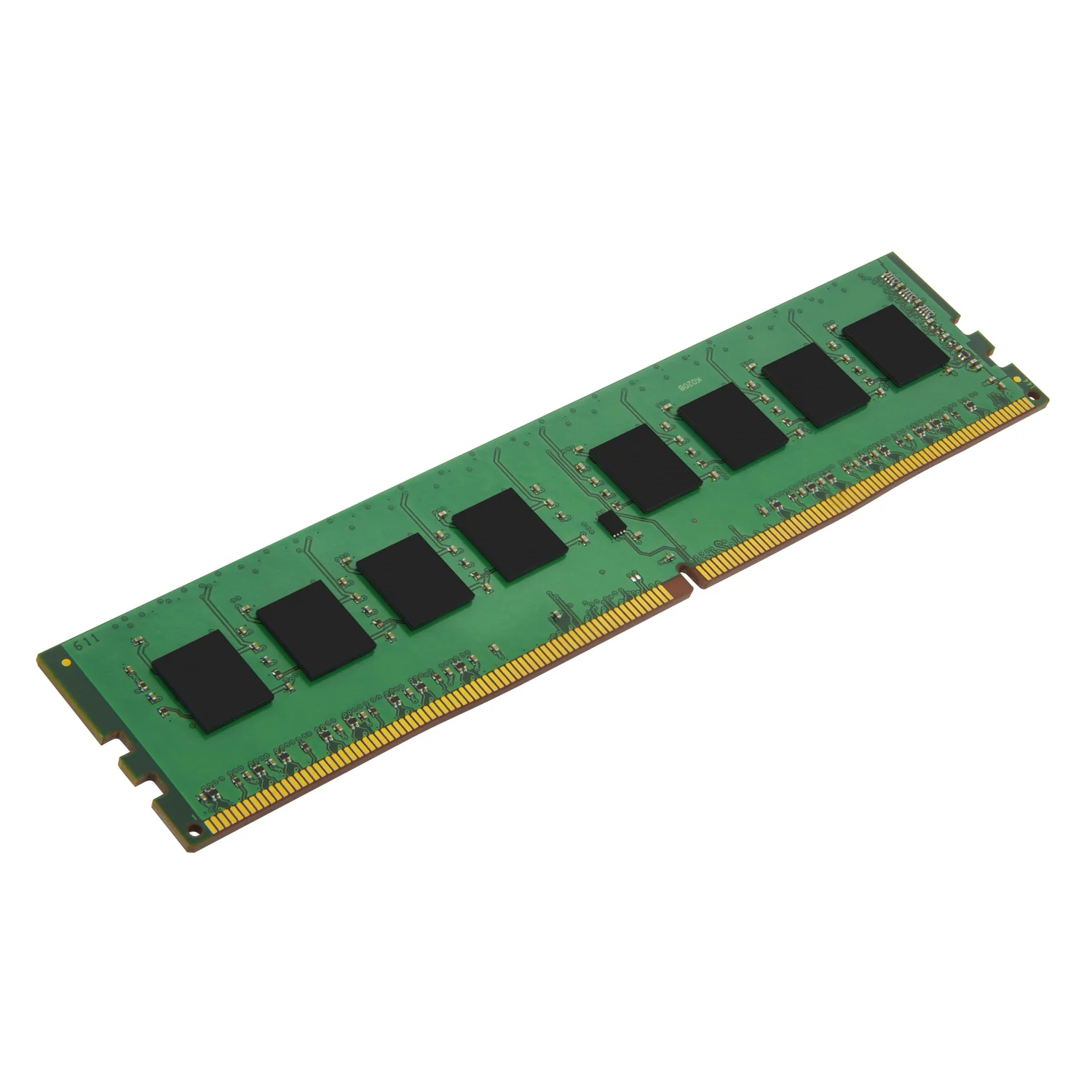

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 288-pin DIMM

16GB, DDR4, 3200MHz, Non-ECC, CL22, 1.2V, Unbuffered, DIMM, 1R, 16Gbit, Bulk

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
