Lindy 100m C6 HDBaseT HDMI, RS232 & IR Extender with PoH

Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
Supports HDMI 10.2G resolutions up to 4K@60Hz 4:2:0
RS-232 & CEC pass-through, bi-directional IR for simple control & integrated 3 port Ethernet hub for LAN access
Supports PoH (Power over HDBaseT), requiring a power supply connection from only one side of the installation
2 year warranty

The 100m Cat.6 HDMI, IR & RS-232 HDBaseT Extender with PoH & Ethernet Hub is an end to end, premium solution for extending HDMI signals over long distances via Cat.6 network cable, while also providing an integrated 3 port Ethernet hub in either unit.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:

100m: 1920×1080@60Hz 4:4:4 8bit

70m: 3840×2160@60Hz 4:2:0 8bit / 30Hz 4:4:4 8bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, providing a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls. A HDMI loop out port on the transmitter also allows for connection of a local display for monitoring, great for control room and CCTV installations.

PoH (Power over HDBaseT) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

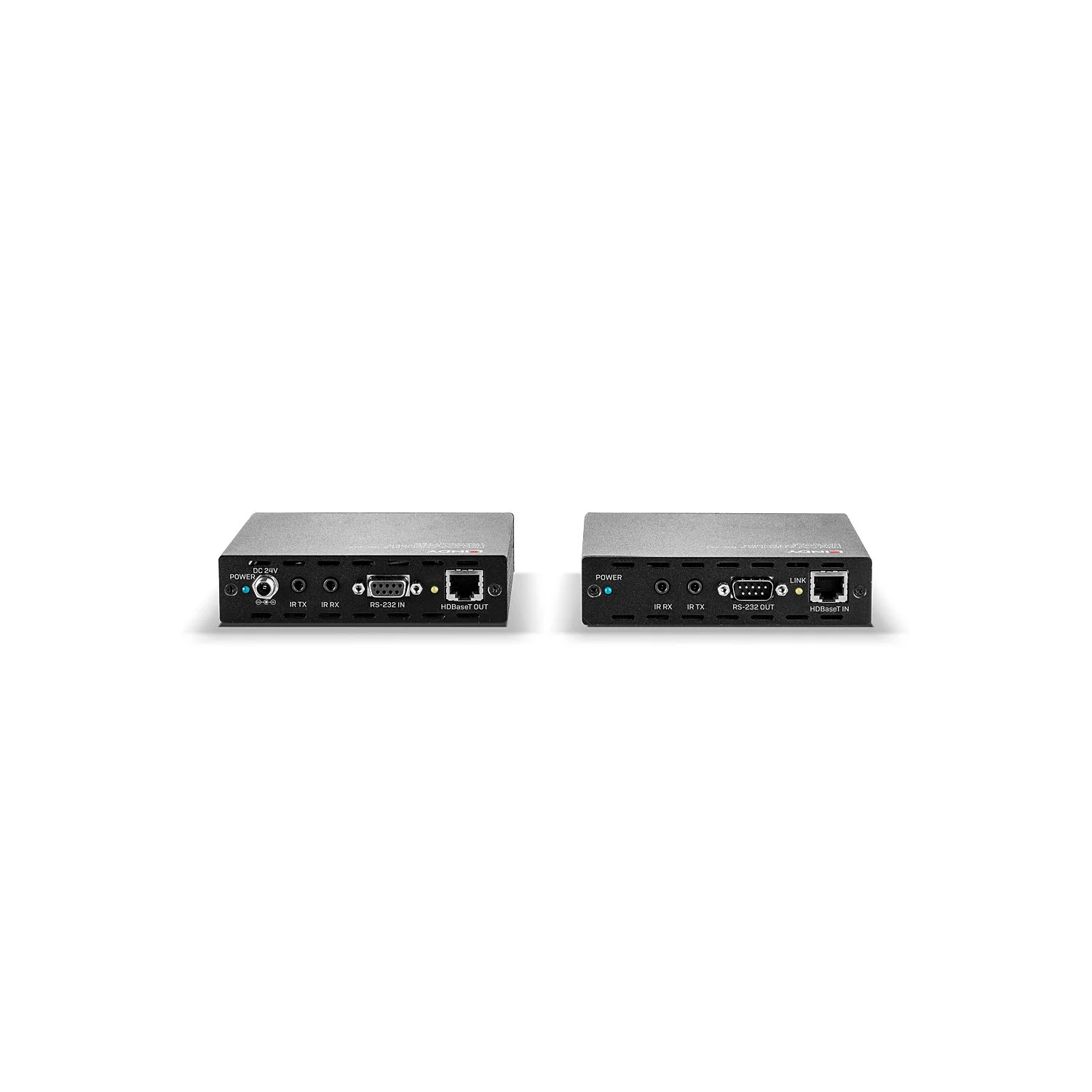

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. RS-232 pass-through also allows for integration into larger control systems.

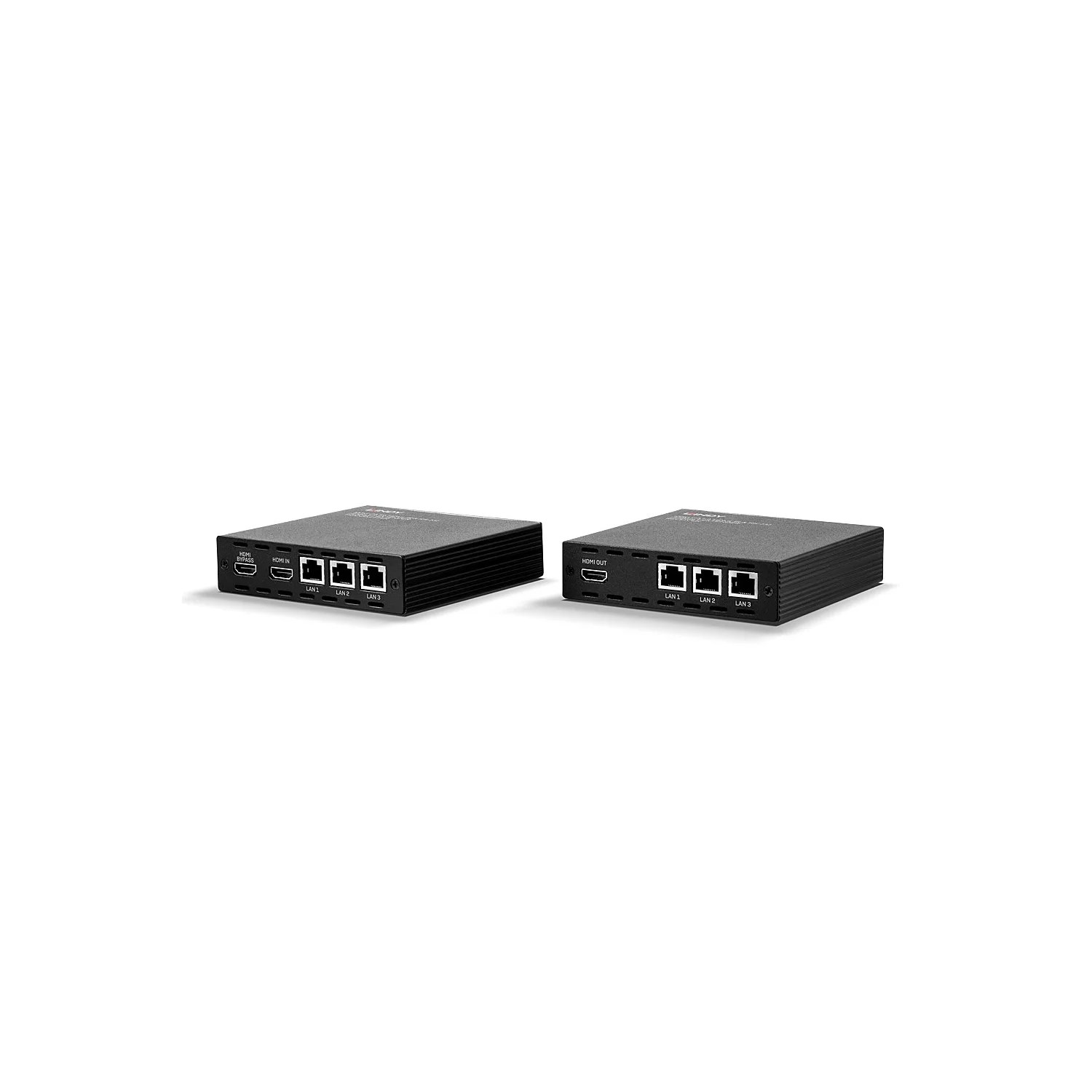

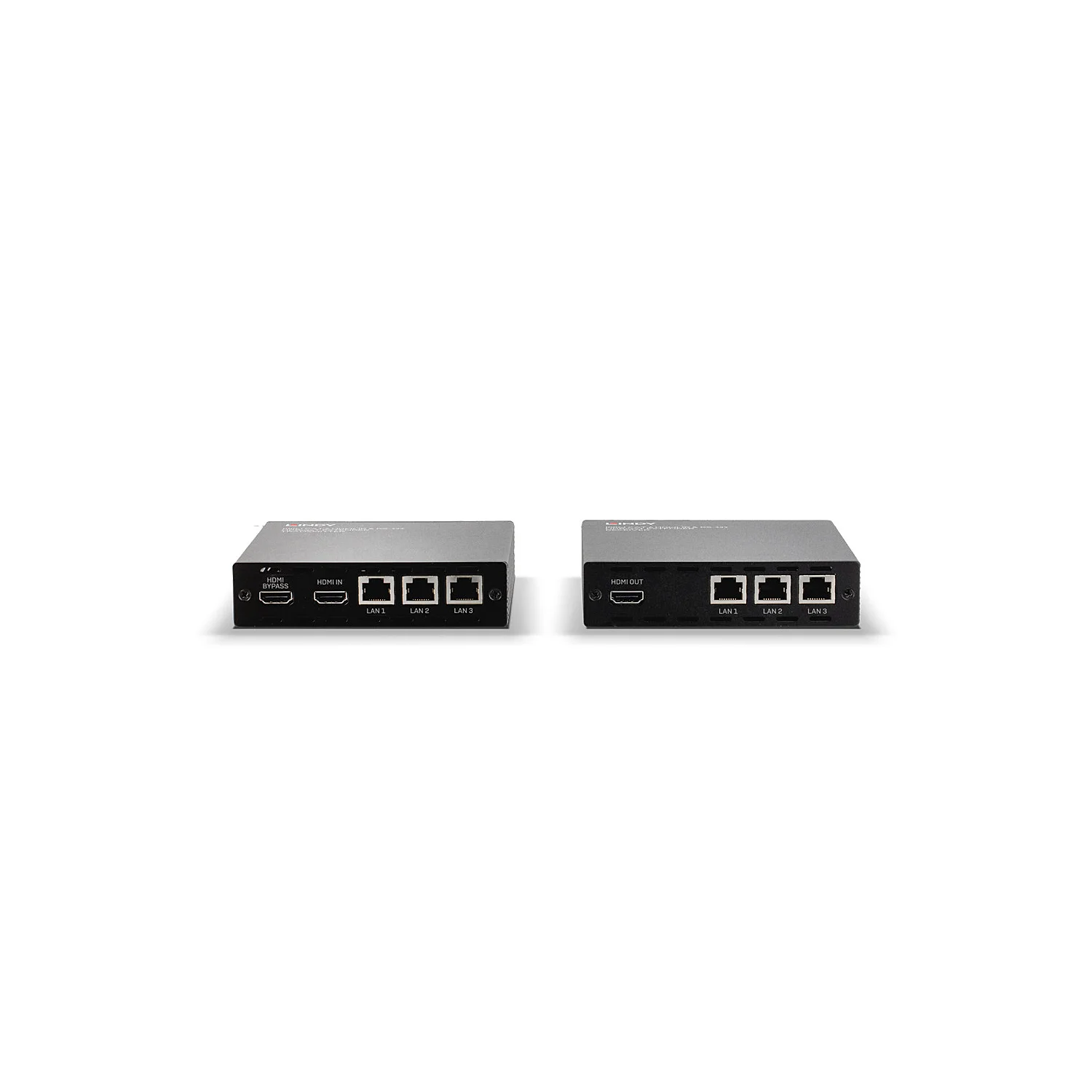

The integrated 3 port Ethernet hub at both the transmitter and receiver units, can be connected easily to standard network devices including routers, network switches or larger hubs for simple access over LAN.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: The local HDMI output of the Transmitter may not be used at the same time as the HDBaseT connection
