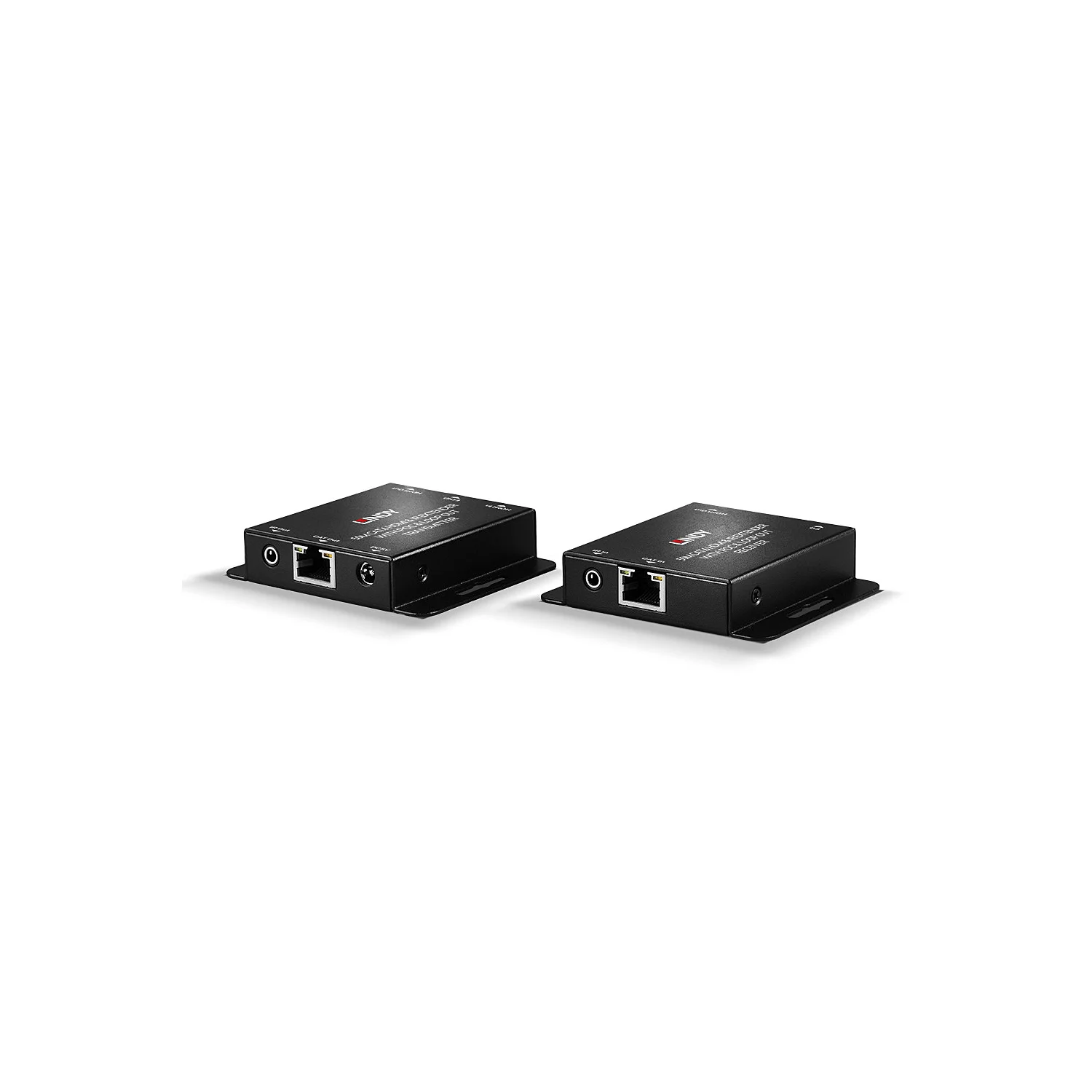

Lindy 50m Cat.6 HDMI & IR Extender with Loop Out

Extends HDMI & IR Signals up to 50m using a single Cat.6 Cable
Supports resolutions up to 1920x1080p@60Hz
Features a loop-through HDMI output on the Transmitter for local monitoring
Supports power over Cat.6, only a single power supply is required
2 year warranty

Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.

The Lindy 50m HDMI & IR Cat.6 Extender is a simple to use plug and play solution which lets the user extend HDMI signals up to 50m using a single low cost Cat.6 U/UTP cable (not included). For added convenience IR signals (20-60 kHz) can also be extended using the supplied IR Receiver and Emitter cables.

Supporting resolutions up to Full HD 1920x1080p@60Hz, video content can be seen with incredible clarity at distances up to 50m, perfect for use in a variety of AV and digital signage applications in a range of settings such as in residnetial setups, education, business, retail and healthcare.

The Extender features an HDMI loop-through output on the Transmitter with simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone. To ensure the maximum compatibility when two displays are connected, the EDID data, which determines the supported video and audio formats, can be used from either a local monitor connected to the Transmitter or the remote monitor connected to the Receiver.

Power over Cat.6 (PoC) functionality enables the Extender to operate from a single power supply connected to the Transmitter, allowing the Receiver to be located where there is limited access to mains power sockets making it ideal for retro fit installations.

In addition to PoC functionality the extender’s slim design allow it to be easier to install in limited spaces behind flat screen displays and follow the trend of more discreet ‘wirefree’ installations.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
