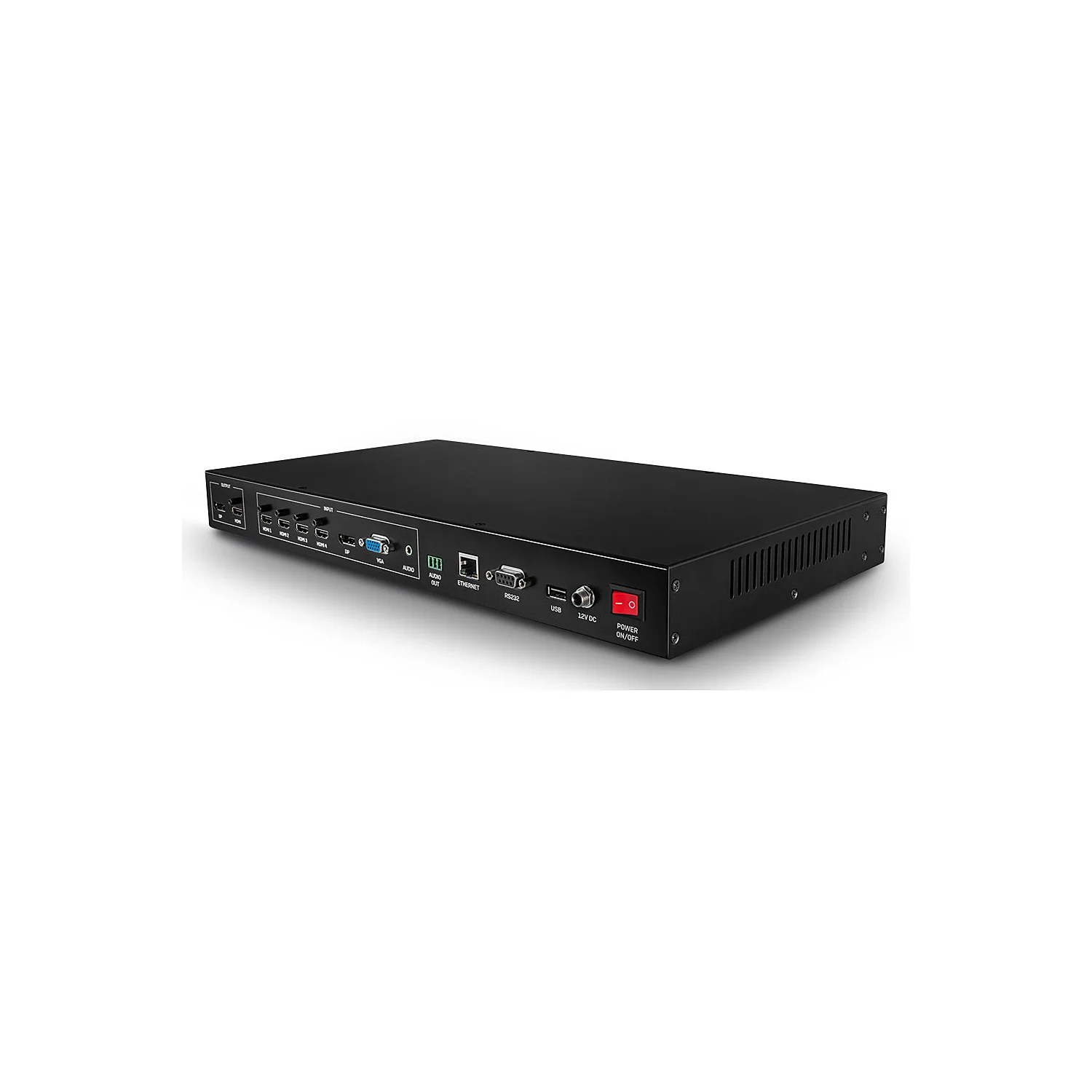

Lindy 6 Port Multi AV to HDMI 2.0 18G Processor Switch

UHD Video Processor capable of scaling 4 video signals across a single display
Supports resolutions up to 4K 3840×2160 @60Hz
Allows complete control over each window position and size
Full scaling and signal conversion for the most common inputs and a second output for monitoring a single input
2 year warranty

The Lindy Ultra HD Multi-View Video Processor is a powerful solution that allows multiple sources to be shown on a single display along with a second output for monitoring a specific input. The Video Processor features full scaling abilities and signal conversion for complete flexibility.

Ideal for situations where multiple video signals must be constantly monitored, for example CCTV stations or statistic and performance monitoring applications in security, retail or corporate environments.

Featuring HDMI, DisplayPort and VGA inputs with HDMI and DisplayPort outputs the Video Processor can be combined with Lindy’s range of high quality Extenders for HDMI, DisplayPort and VGA signals, allowing the Video Processor to be installed near the source or display equipment as required.

Screen Modes and Pre-set Layouts
PoP/PiP and Multi-View video modes can be configured by the unit. This provides complete control over where each input is displayed on a single screen using any combination of up to 4 video sources. 6 pre-set video layouts allow for simple, out of the box, setup and installation. These layouts can be selected using the front panel buttons or using the Web GUI tool.

Monitoring Output

A separate DisplayPort output is provided for full screen monitoring, ideal for close observation of a specific input signal.

Scaling and Signal Conversion

The Video Processor features scaling support which enables you to have different input resolutions and the ability to select the output resolution. Full signal flexibility is provided with integrated signal conversion across the unit, for example VGA signals can be converted to HDMI or DP signals.
