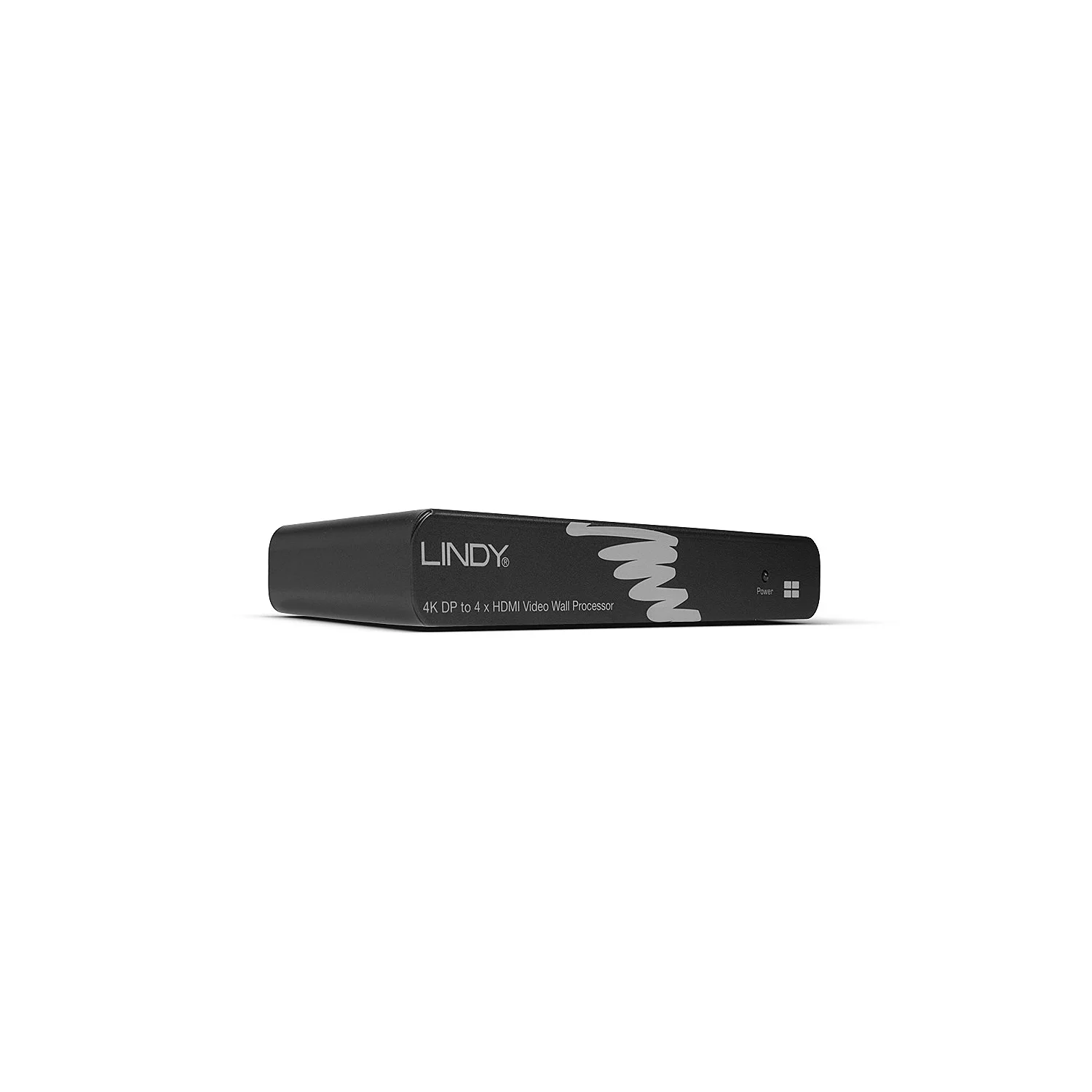

Lindy DisplayPort 1.2 to 4 x HDMI Converter

Creates a 2×2 4K Ultra HD video wall from a single DisplayPort 1.2 source
High performance DisplayPort 1.2 MST and SST Hub, with Video Wall, Duplicate, Extended & Expander View / Eyefinity functionality
Supports DisplayPort & HDMI resolutions up to 4K@60Hz 4:4:4
Supports DisplayPort MST and SST modes
2 year warranty

DisplayPort MST Hubs allow for the connection of multiple displays to a single DP source, to create larger workstation setups or larger scale DP distribution.

The Lindy DisplayPort to Quad HDMI MST/SST Hub with Video Wall Processor is a high-performance DP 1.2 MST and SST hub, with Video Wall, Duplicate, Extended and Expander View / Eyefinity functions.

To create a wide variety of display solutions, this processor groups the displays connected to port 1 and 2 together to create 1 single output, and then also apply this to the displays connected to 3 and 4.

This allows for the use of 4 different modes as detailed below. Maximum supported resolution can depend on the windows configuration, graphics card and connected display.

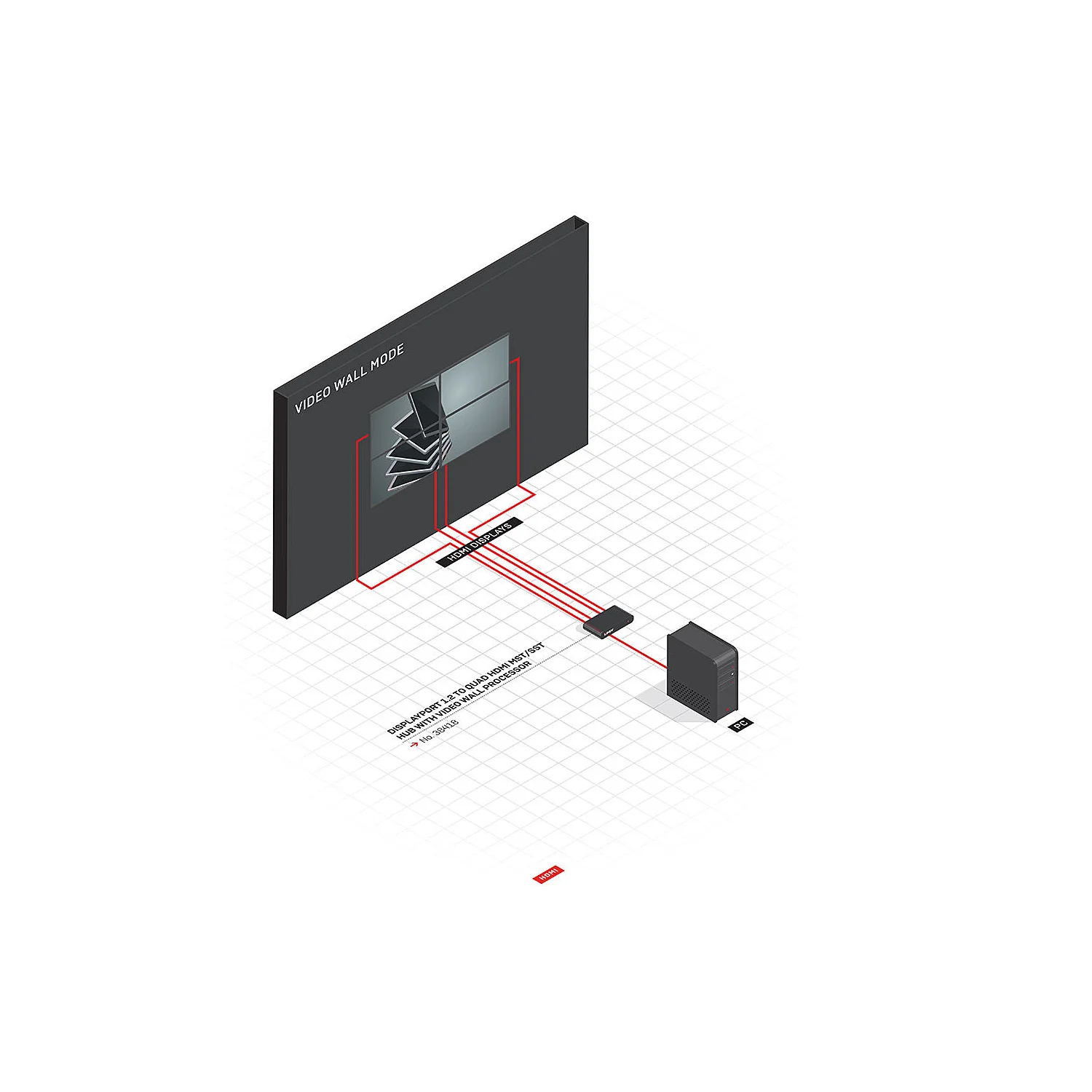

Video Wall Mode:

· Supports resolutions up to 3840×2160@60Hz using 4 displays connected together to create a single display, visualised as a 2×2 video wall.

· This is a great solution for digital signage in retail, transport hubs or trade shows.

For the system requirements and set-up instructions of certain graphics cards, please refer to the Lindy manual under the Downloads section of this page.

Duplicate Mode:

· Supports resolutions up to 1920×1080@60Hz per display, using up to 4 displays. This works similar to a standard DisplayPort splitter with SST functionality, duplicating the input signal onto each individual display. The processor can also split the signal across 2 individual 4K displays, with resolutions up to 3840×2160@60Hz.

· Using the grouped layout, resolutions up to 3840×1080@60Hz can be supported, duplicating the signal across the 2 separate groups (1+2) and (3+4).

These modes are great for use in security, surveillance and control installations.

Extended Mode:

· This mode supports resolutions up to 3840×1080@60Hz per display by using the grouped layout of displays 1+2 and 3+4. Content can be then shared across the 2 layouts simply by dragging the mouse across the displays.

This is useful for creating a large-scale office setup, or in graphic designs installations where users want to easily transfer content to another display or user.

Expander / Eyefinity Mode:

· This mode allows for the connection of 4 displays to create a multi-display workstation, viewed as a single display with resolutions up to 7680×1080@60Hz, with each display showing Full HD signals. Alternatively using 2 4K displays viewed as a single display, 7680×2160@30Hz can be viewed. This allows for the creation of a premium office or home workstation, or high-performance control set-ups in broadcasting and surveillance.

Multiple MST/SST hubs can be used to create even larger display setups, providing this cna be supported by the display driver and graphics card.

Please note: This active MST Hub requires the source or graphics card to support DP++ to provide dual-mode signals

Please note: this MST hub does not support output to 3 displays.

Please note: NVIDIA graphics cards require a display to be connected to the graphics card for control. Intel and AMD cards do not require this.
