Lindy Single Port HDBaseT Input Board

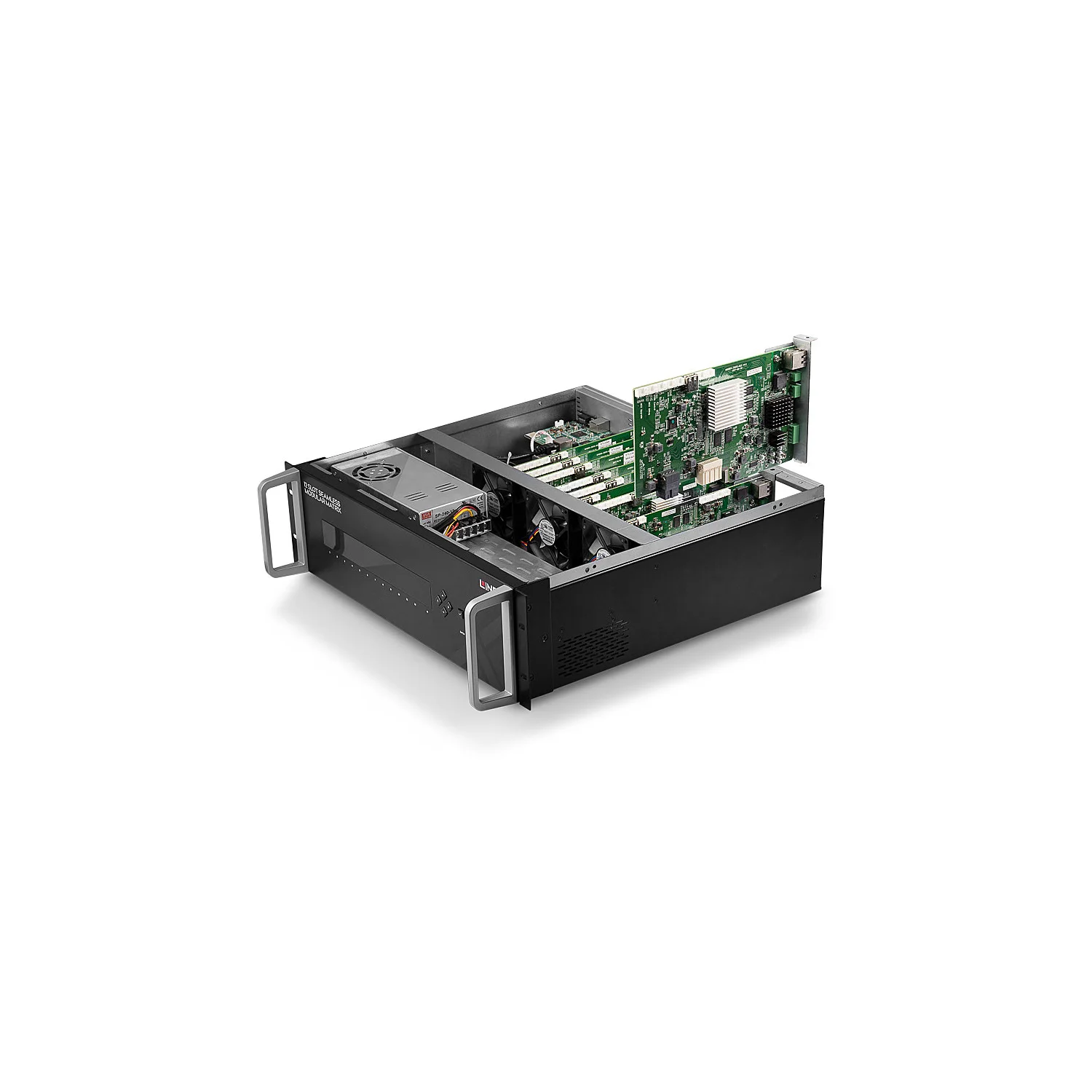

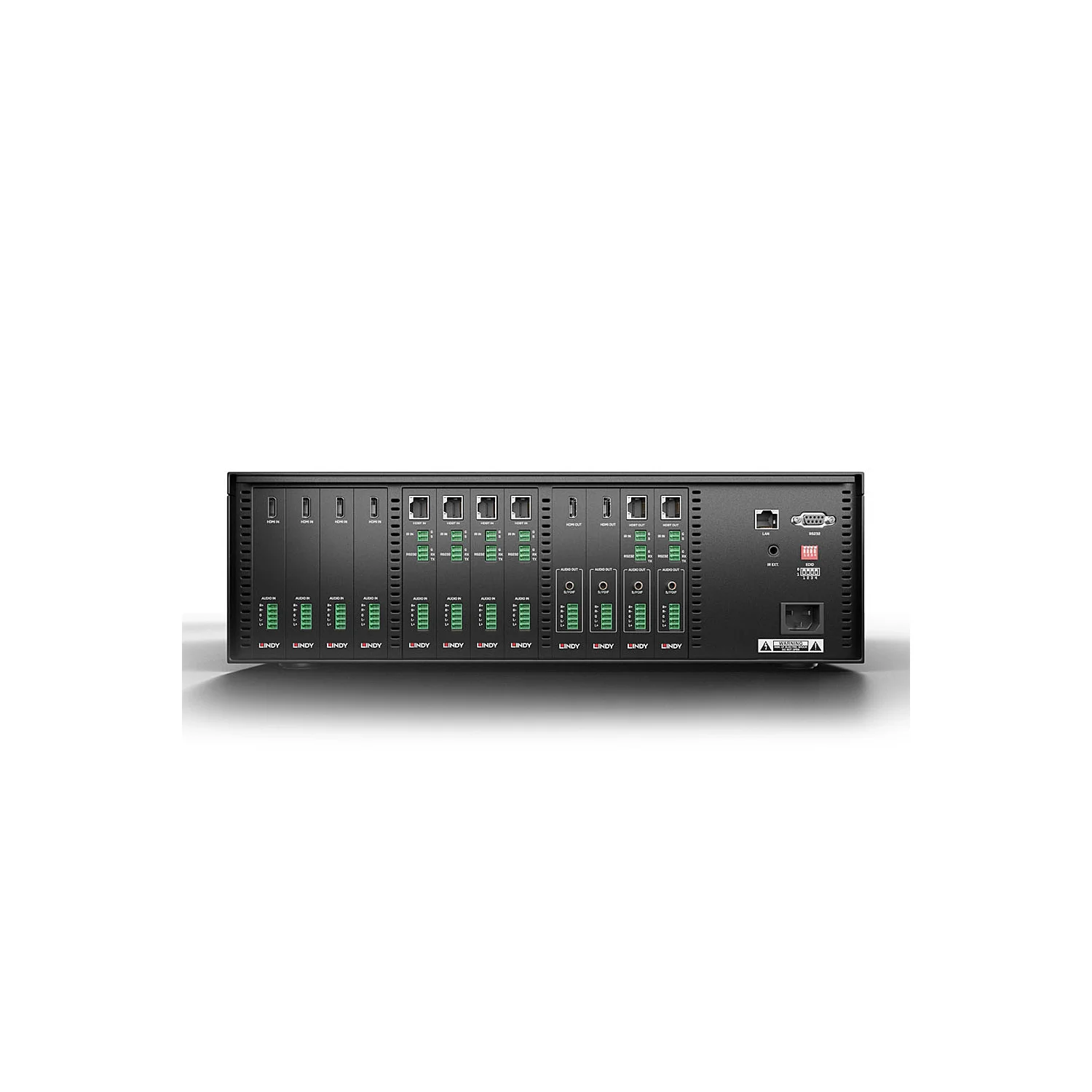

The Lindy 12 Slot Seamless Modular Matrix is a powerful AV device that creates flexible, centralised installations in a variety of environments. With fully customisable configurations of HDMI and HDBaseT boards possible, from 1×11, 6×6, 8×4 and more, this solution can be tailored to meet the requirements of any installation within education, hospitality, corporate or government sectors.

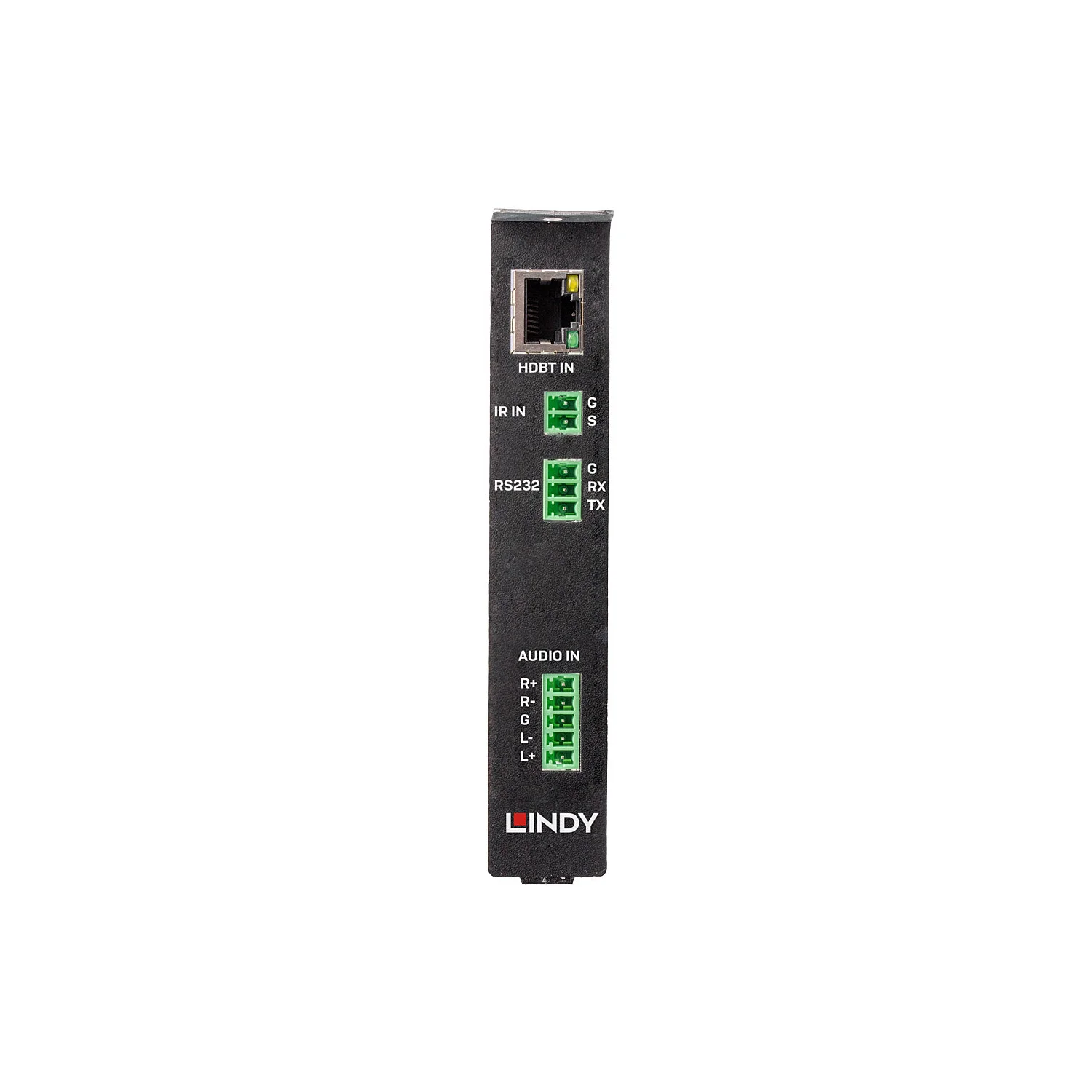

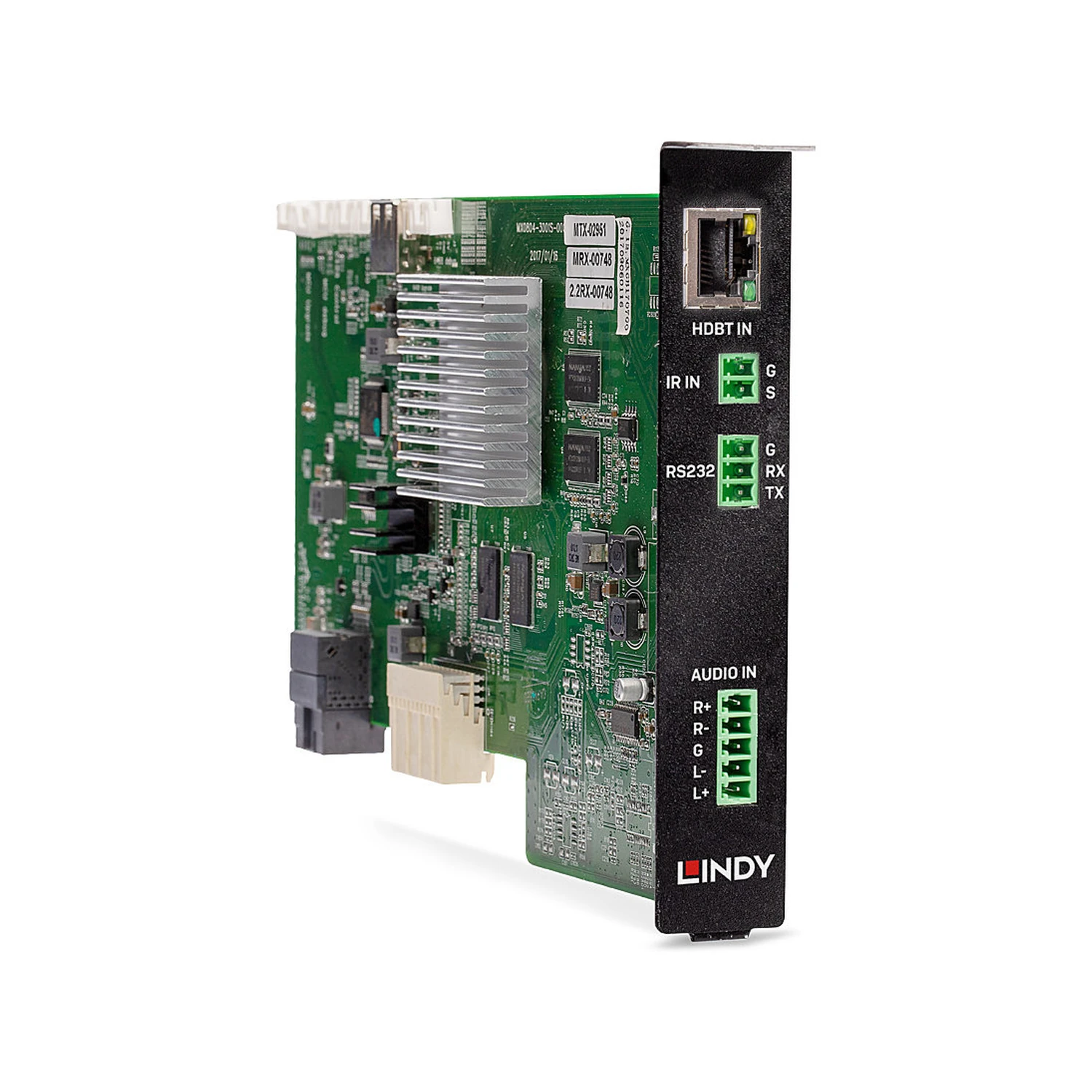

This board can be combined with 38351, 38353 or 38354 to create a fully customised 12 slot solution that meets the requirements of any installation. This board includes a single RJ-45 Female port for use with HDBaseT transmitters and matrices.

This allows for the extension of 4K@60Hz 4:2:0 HDMI signals over distances up to 100m with a compatible HDBaseT transmitter, perfect for remotely placing source devices away from the matrix or providing control options from a distance via RS-232 and IR. The HDBaseT board also includes audio embedding inputs for the connection of external audio devices.

If desired, Lindy can pre-install the required modular boards that have been purchased, providing a quick and simple installation for the user once the matrix has been received.
